REGAL TOOLS & BROACHES

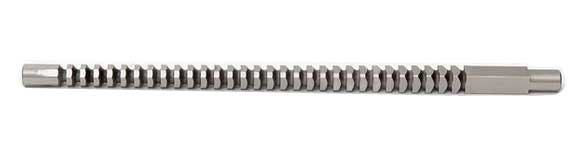

We are Manufacturer and Exporter of HSS Square Push Broaches which are usually designed to generate in one pass a standard square hole in previously done round hole. It is manufactured from High speed steel. Our range of Square Push Broaches are ideal for cutting accurate square forms in metal products by using a pilot hole and required broach. Each tooth of Broach is progressively larger and each cuts slightly deeper than the tooth before. These square broaches are available in Metric Size. It is well suited for use in variety of ferrous and non-ferrous materials. We can also supply these products as per customer requirement of size and Material.

SPECIFICATIONS AND FEATURES::

Material : High Speed Steel

Can be supplied in all types of coatings

Size : Metric

Broach length : 5-9/16”-24-9/16”

Hex Size : 4mm-25mm”

Well suited for use in variety of ferrous and non-ferrous material

HSS Hexagon Push Broaches (Metric)					LENGTH OF CUT
Hex Size	Tolerance	Broach Length	Pilot Dia.	Drill Size	Min.	Max.
4mm	.1580"-.1585"	5-9/16"	.1655"	4.2mm	5/16"	5/8"
5mm	.1973"-.1983"	6-7/8"	.2074"	5.2mm	3/8"	3/4"
6mm	.2367"-.2377"	7"	.2500"	6.35mm	3/8"	3/4"
8mm	.3155"-.3165"	8-3/16"	.3267"	8.3mm	7/16"	7/8"
10mm	.3942"-.3952"	10-7/8"	.4057"	10.3mm	1/2"	1"
12mm	.4729"-.4739"	12-1/2"	.4921"	12.5 mm	5/8"	1-1/4"
14mm	.5517"-.5527"	14-7/8"	.5905"	15mm	3/4"	1-1/2"
16mm	.6310"-.6320"	16-13/16"	.6693"	17mm	7/8"	1-3/4"
18mm	.7092"-.7102"	18-1/2"	.7874"	20mm	7/8"	1-3/4"
20mm	.7879"-.7889"	18-7/8"	.8661"	22mm	7/8"	1-3/4"
22mm	.8666"-.8676"	23-1/4"	.9448"	24mm	7/8"	1-3/4"
24mm	.9454"-.9464"	24-9/16"	1.0236"	26mm	7/8"	1-3/4"
25mm	.9848"-.9858"	24-9/16"	1.0630"	27mm	7/8"	1-3/4"
