REGAL TOOLS & BROACHES

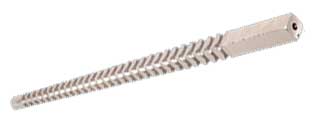

We are Manufacturer and Exporter of Square Broaches which are Ideal for cutting square forms in Metal products simply using a pilot Hole and required Broach. Square Broaches are usually designed to generate, in one pass, a square hole in previously cast or drilled round hole. These are available in Inch and Metric sizes and are available in M-2, M-35, M-42, ASP-2030. We can also manufacture square Broaches as per special requirements of Material and Size and are available in all types of surface PVD Coatings.
Material : HSS M-2,M-35,M-42,ASP-2030
Available in all types of Surface Coatings
Push Type and Pull type
Length: Customised
Applications/Use: Automobile Industries
Types: Inch square broaches, full square broaches, Metric square broaches
| Size Square | Tolerance | Dimension Across Corners | Pilot Diameter | Drill Size | Broach Length | Min. Length of Cut | Max. Length of Cut |
|---|---|---|---|---|---|---|---|
| 1/8" | .1250" - .1260" | .1750" - .1770" | .1280" | No. 30 | 4 5/8" | 3/16" | 1/2" |
| 5/32" | .1565" - .1575" | .2180" - .2200" | .1585" | No. 21 | 5 5/8" | 1/4" | 1/2" |
| 3/16" | .1880" - .1890" | .2620" - .2640" | .1930" | No. 10 | 5 11/16" | 1/4" | 5/8" |
| 7/32" | .2190" - .2200" | .3050" - .3070" | .2275" | No. 1 | 6 7/8" | 1/4" | 3/4" |
| 1/4" | .2505" - .2515" | .3500" - .3520" | .2651" | 17/64" | 7" | 1/4" | 3/4" |
| 9/32" | .2815" - .2825" | .3930" - .3950" | .2964" | 19/64" | 7 1/4" | 3/8" | 1" |
| 5/16" | .3130" - .3140" | .4370" - .4390" | .3276" | 21/64" | 8 1/8" | 3/8" | 1" |
| 11/32" | .3440" - .3450" | .4810" - .4830" | .3589" | 23/64" | 9 5/8" | 3/8" | 1 1/4" |
| 3/8" | .3755" - .3765" | .5230" - .5250" | .3901" | 25/64" | 9 7/8" | 3/8" | 1 1/4" |
| 13/32" | .4065" - .4075" | .5680" - .5700" | .4214" | 27/64" | 10 7/8" | 1/2" | 1 3/8" |
| 7/16" | .4385" - .4395" | .6110" - .6130" | .4526" | 29/64" | 11 3/8" | 1/2" | 1 3/8" |
| 15/32" | .4690" - .4700" | .6560" - .6580" | .4995" | 1/2" | 12 1/2" | 1/2" | 1 3/8" |
| 1/2" | .5005" - .5015" | .6970" - .6990" | .5307" | 17/32" | 12 5/8" | 1/2" | 1 3/8" |
| 9/16" | .5630" - .5640" | .7860" - .7880" | .5932" | 19/32" | 14 7/8" | 1/2" | 1 1/2" |
| 5/8" | .6260" - .6270" | .8710" - .8730" | .6557" | 21/32" | 16 13/16" | 5/8" | 1 5/8" |
| 11/16" | .6885" - .6895" | .9610" - .9630" | .7495" | 3/4" | 18 1/2" | 5/8" | 1 5/8" |
| 3/4" | .7510" - .7520" | 1.0450" - 1.0470" | .8120" | 13/16" | 18 7/8" | 5/8" | 1 5/8" |
| 7/8" | .8765" - .8775" | 1.2280" - 1.0300" | .9370" | 15/16" | 22 3/4" | 1/2" | 2" |
| 1" | 1.0020" - 1.0030" | 1.4030" - 1.4050 | 1.0932" | 1-3/32" | 24 1/2" | 1/2" | 2" |
| 1" | 1.0020" - 1.0030" | 1.4030" - 1.4050" | 1.0932" | 1-3/32" | 24 1/2" | 1/2" | 2" |
| Size Square | Tolerance | Dimension Across Corners | Pilot Diameter | Drill Size | Broach Length | Min. Length of Cut | Max. Length of Cut | Pressure Required for Max. L/C |
|---|---|---|---|---|---|---|---|---|
| 3/16" | .1880" - .1890" | .2628" - .2632" | .1870" | 3/16" | 6 1/4" | 3/16" | 1/2" | 1200 lbs |
| 1/4" | .2505" - .2515" | .3513" - .3517" | .2495" | 1/4" | 8 5/8" | 1/4" | 5/8" | 1600 lbs |
| 5/16" | .3120" - .3140" | .4375" - .4380" | .3120" | 5/16" | 10 1/4" | 1/4" | 3/4" | 2300 lbs |
| 3/8" | .3755" - .3765" | .5243" - .5247" | .3745" | 3/8" | 12 1/4" | 3/8" | 1" | 3750 lbs |
| 1/2" | .5005" - .5015" | .6980" - .6990" | .4995" | 1/2" | 14 7/16" | 3/8" | 1" | 5000 lbs |
| Size Square | Tolerance | Dimension Across Corners | Pilot Diameter | Drill Size | Broach Length | Min. Length of Cut | Max. Length of Cut |
|---|---|---|---|---|---|---|---|
| 4 mm | .1580" - .1585" | .2080" - .2090" | .1655" | 4.2 mm | 5 9/16" | 5/16" | 5/8" |
| 5 mm | .1973" - .1983" | .2645" - .2655" | .2047" | 5.2 mm | 6 7/8" | 3/8" | 3/4" |
| 6 mm | .2367" - .2377" | .3295" - .3300" | .250" | 6.35 mm | 7" | 3/8" | 3/4" |
| 8 mm | .3155" - .3165" | .4405" - .4410" | .3267" | 8.3 mm | 8 3/16" | 7/16" | 7/8" |
| 10 mm | .3942" - .3952" | .5435" - .5445" | .4057" | 10.3 mm | 10 7/8" | 1/2" | 1" |
| 12 mm | .4729" - .4739" | .6540" - .6550" | .4921" | 12.5 mm | 12 1/2" | 5/8" | 1 1/4" |
| 14 mm | .5517" - .5527" | .7700" - .7710" | .5905" | 15.0 mm | 14 7/8" | 3/4" | 1 1/2" |
| 16 mm | .6310" - .6320" | .8780" - .8790" | .6693" | 17.0 mm | 16 13/16" | 7/8" | 1 3/4" |
| 18 mm | .7092" - .7102" | .9880" - .9890" | .7874" | 20.0 mm | 18 1/2" | 7/8" | 1 3/4" |
| 20 mm | .7879" - .7889" | 1.0990" - 1.1000" | .8661" | 22.0 mm | 18 7/8" | 7/8" | 1 3/4" |
| 22 mm | .8666" - .8676" | 1.2110" - 1.2120" | .9448" | 24.0 mm | 23 1/4" | 7/8" | 1 3/4" |
| 24 mm | .9454" - .9464" | 1.3170" - 1.3180" | 1.0236" | 26.0 mm | 24 9/16" | 7/8" | 1 3/4" |
| 25 mm | .9848" - .9858" | 1.3730" - 1.3740" | 1.0630" | 27.0 mm | 24 9/16" | 7/8" | 1 3/4" |
