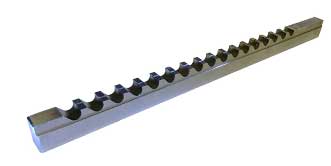

We are Manufacturer and Exporter of HSS keyway Broaches (Inch) Type which are made from High Speed Steel. These are made to cut inch size keyways. HSS Keyway are supplied with necessary shims. our superior quality Broaches are are available in Push as well as Pull Type. It is available in all standards as per DIN, SES, ANSI and other related standards. We manufacture HSS Keyway Broaches using high quality HSS material which is acquired from leading suppliers in the industry. These are available in all types of surface Coatings which includes TiN, Ticn, Altin or as per request. Keyway Broaches are available in both American Standard and metric Sizes. We can also supply these Broachesto fulfill our customer requirement of material and size.
Material : HSS
Type : Inch Keyway Broach
Can be supplied with all types of Coatings
Size : As requested
Push and Pull Type
Broach Size | Approx dimension | SHIMS REQ's | Torlerance ND.2 |
---|---|---|---|
1/16'' | 1/8"x5" | 0 | .0625"-.6350" |
3/32" | 1/8"x5" | 0 | .0938"-.0948" |
1/8" | 1/8"x5" | 1 | .1252"-.1262" |
3/32" | 3/16"x6-3/4" | 0 | .0937"-.0947" |
1/8" | 3/16"x6-3/4" | 1 | .1252"-.1262" |
5/32" | 3/16"x6-3/4" | 1 | .1564"-.1574" |
3/16" | 3/16"x6-3/4" | 1 | .1877"-.1887" |
3/16" | 3/16"x6-3/4" | 1 | .1877"-.1887" |
1/4" | 3/16"x6-3/4" | 1 | .25.02"-.2512" |
5/16" | 3/16"x6-3/4" | 1 | .3127"-.3137" |
3/8" | 3/16"x6-3/4" | 2 | .3755"-.3765" |
5/8" | 9/16"x13-7/8" | 1 | .3127"-.3137" |
3/8" | 9/16"x13-7/8" | 2 | .3755"-.3765" |
7/16" | 9/16"x13-7/8" | 2 | .4380"-.4390" |
1/2" | 9/16"x13-7/8" | 3 | .5006"-.5016" |
5/8" | 3/4"x15-1/2" | 4 | .6260"-.6270" |
3/4" | 3/4"x15-1/2" | 5 | .7515"-.7525" |
7/8" | 1"x20-1/4" | 6 | .8765"-.8775" |
1" | 1"x20-1/4" | 7 | 1.0015"-1.00025" |
