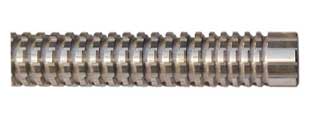

Involute Spline Broaches

We are manufacturer and exporter of Involute Spline Broaches. These are popular forms used for connecting driven components in machines and vehicles. These are made in all standards i.e. ANSI, JIS, DIN 5480 and so on. These are also manufactured in missing spline and knock off splines. We have a complete range of Broaches which includes Serration Broaches, Helical Broaches, Square Broaches, Round Broaches and so on. We manufacture these Broaches using high quality raw material acquired from leading vendors in the industry. The Module range is in between 0.5 to 8 and diameter pitch is from 8DP -40 DP.The material used for Involute Spline Broaches is HSS or it can also be supplied as per customer requirement of material.

PRODUCT SPECIFICATIONS AND FEATURES::

---

Standard: ANSI, DIN, JIS and so on

---

Module: 05m-8m

---

Diameter Pitch : 8DP-40DP

---

Type: Push Type and Pull Type

---

Pressure Angle : 14.5”,20”,25”,30”.

---

No. of Splines : As specified
