HSS Keyway Broaches Set (Inch)

HSS Keyway Broaches Set (Inch) Regal Tools

REGAL TOOLS & BROACHES

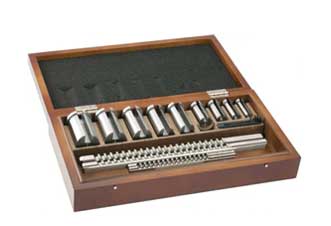

We are manufacturer and Exporter of HSS Keyway Broaches Set in Inch sizes. It is available in Inch Size with all types of Standard PVD Coatings. Keyway Broach set includes multiple Keyway Broaches in range of sizes which are used for creating precise keyways in bore holes of pulleys, gears, Washers. It also contains shims for controlling the depth of keyway. Also Keyway Broaches set eliminate the problem of individual tools separately and are ideal for jobs that includes frequent use of many different sizes of keyway broaches. Our Broach sets includes the most common combinations of Metric Keyway Broaches and Bushings. The material used for manufacturing these sets is High Speed Steel.We can also supply these Keyway Broaches Sets as per customer requirement of Material and size.

SPECIFICATIONS AND FEATURES::

Available Material : HSS

Smallest Broach set : 1/16 – 5/16

Largest Broach Set : 1/8”-1/2”

Available with all standards of PVD Coatings

Type : Inch type

NO.00 KEYWAY BROACHES SET
Keyway Size	Broach Style	Bushing Dia.
1/16"	A	1/4,5/16, 3/8, 7/16, 1/2"
3/32"	A	COLLARED BUSHINGS
1/8"	A	-

NO.10 A KEYWAY BROACHES SET
Keyway Size	Broach Style	Bushing Dia.
1/8"	B	1/2, 5/8"
3/16"	B	3/4, 7/8"
1/4"	C	1, 1-1/8"
3/8"	C	1-1/4, 1-3/8, 1-1/2"
		COLLARED BUSHINGS

NO.10 A KEYWAY BROACHES SET
Keyway Size	Broach Style	Bushing Dia.
1/8"	B	9/16"
3/16"	B	11/16, 13/16"
1/4"	C	15/16, 1-1/16,1-3/16"
3/8"	C	1-5/16, 1-7/16,
		COLLARED BUSHINGS

NO.20 KEYWAY BROACHES SET
Keyway Size	Broach Style	1/2,9/16,5/8,11/16"
1/8"	B	1/2, 9/16,5/8, 11/16"
3/16"	B	3/4, 13/16, 7/8"
1/4"	C	15/16, 1-1/16,1-3/16"
5/16"	C	1-1/4, 1-5/16,1-3/8"
3/8"	C	1-7/16,1-1/2,1-9/16"
		COLLARED BUSHINGS
